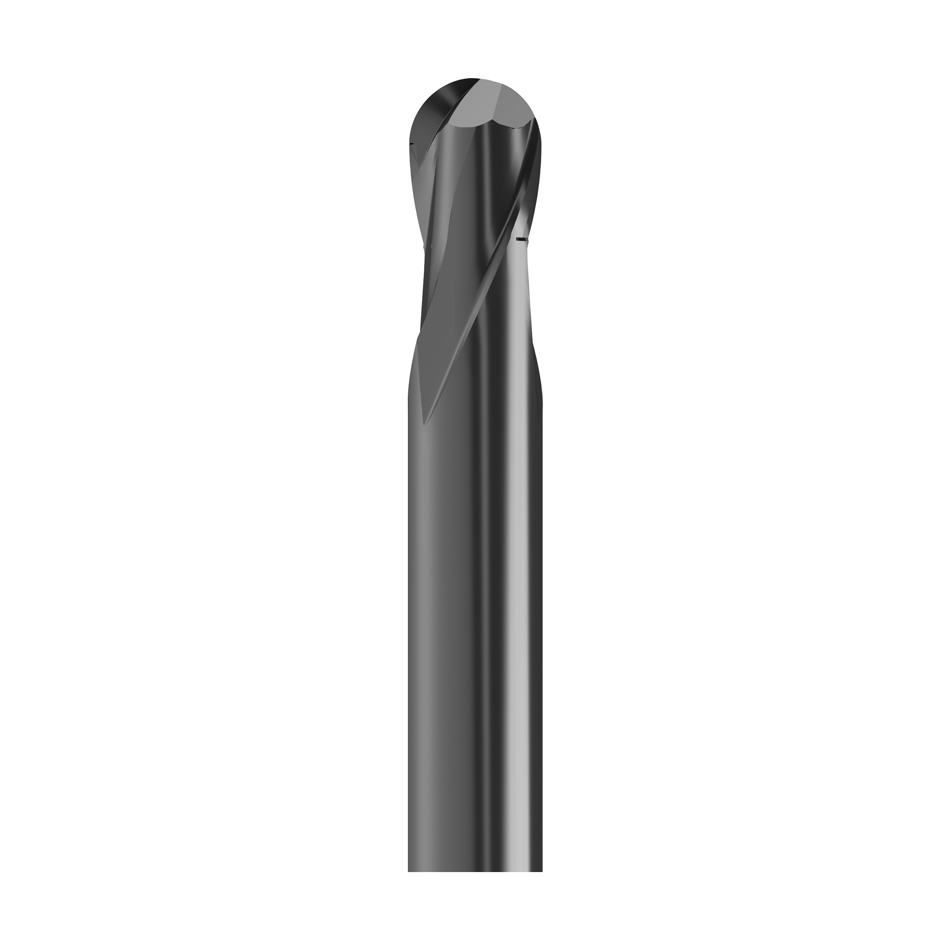

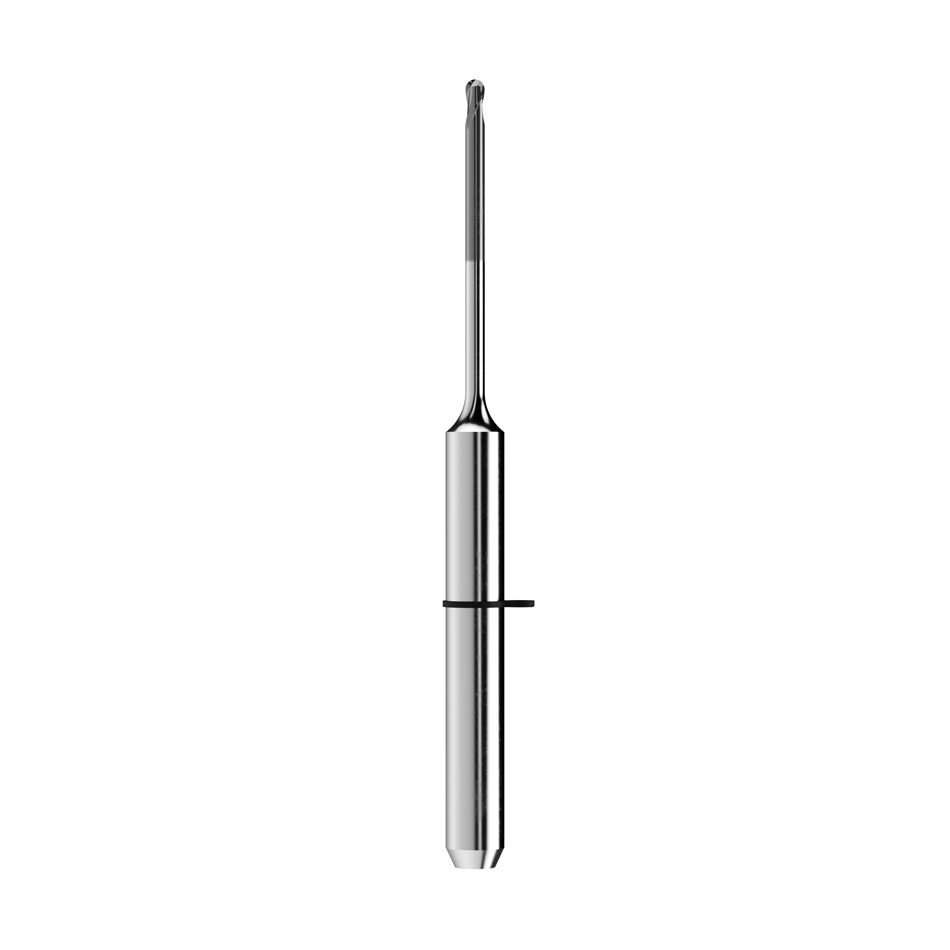

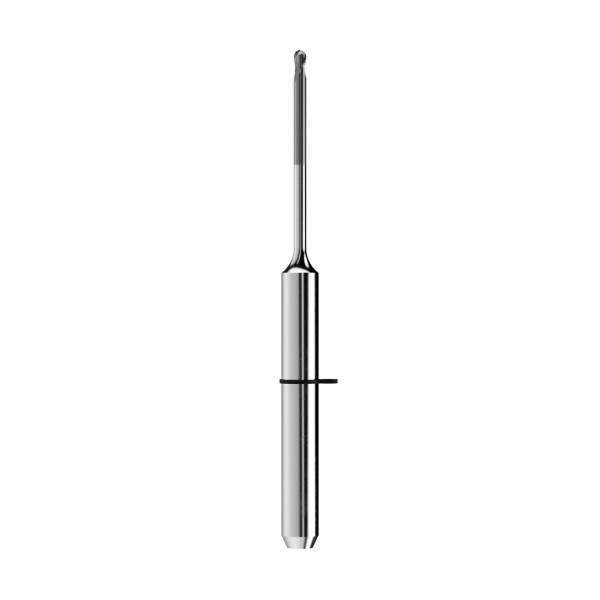

solid carbide ballnose end mill Ø1mm, optimized for machining composite
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 803.190.A
solid carbide ballnose end mill Ø1mm, optimized for machining composite, 2-flute, highest... more
Product information about "solid carbide ballnose end mill Ø1mm, optimized for machining composite"
solid carbide ballnose end mill Ø1mm, optimized for machining composite, 2-flute, highest precision due to very tight tolerances and excellent surface qualities, with neck length l3=16mm, and DIA PREMIUM COATING for vhf (5-ax) machines with shank d2=3mm
Product features
| type of tools: | ballnose end mill |
| Radius ( r): | 0,5 |
| Machinable Material: | composite |
| compatible with machine system: | vhf (5-ax) |
| cutting diameter in mm (d1): | 1 |
| shank diameter in mm (d2): | 3 |
| coating: | DIA PREMIUM COATING |
| neck length in mm (l3): | 16 |
| total length in mm (l1): | 40 |
| radius (r): | 0,5 |
| cutting length in mm (l2): | 1 |
| number of cutting edges (z): | 2 |
