Preview: solid carbide ballnose end mill Ø5mm, optimized for machining PMMA, PEEK, wax

solid carbide ballnose end mill Ø5mm, optimized for machining PMMA, PEEK, wax

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 805.575.A

solid carbide ballnose end mill Ø5mm, optimized for machining PMMA, PEEK, wax, 1-flute, highest... more

Close menu

Product information about "solid carbide ballnose end mill Ø5mm, optimized for machining PMMA, PEEK, wax"

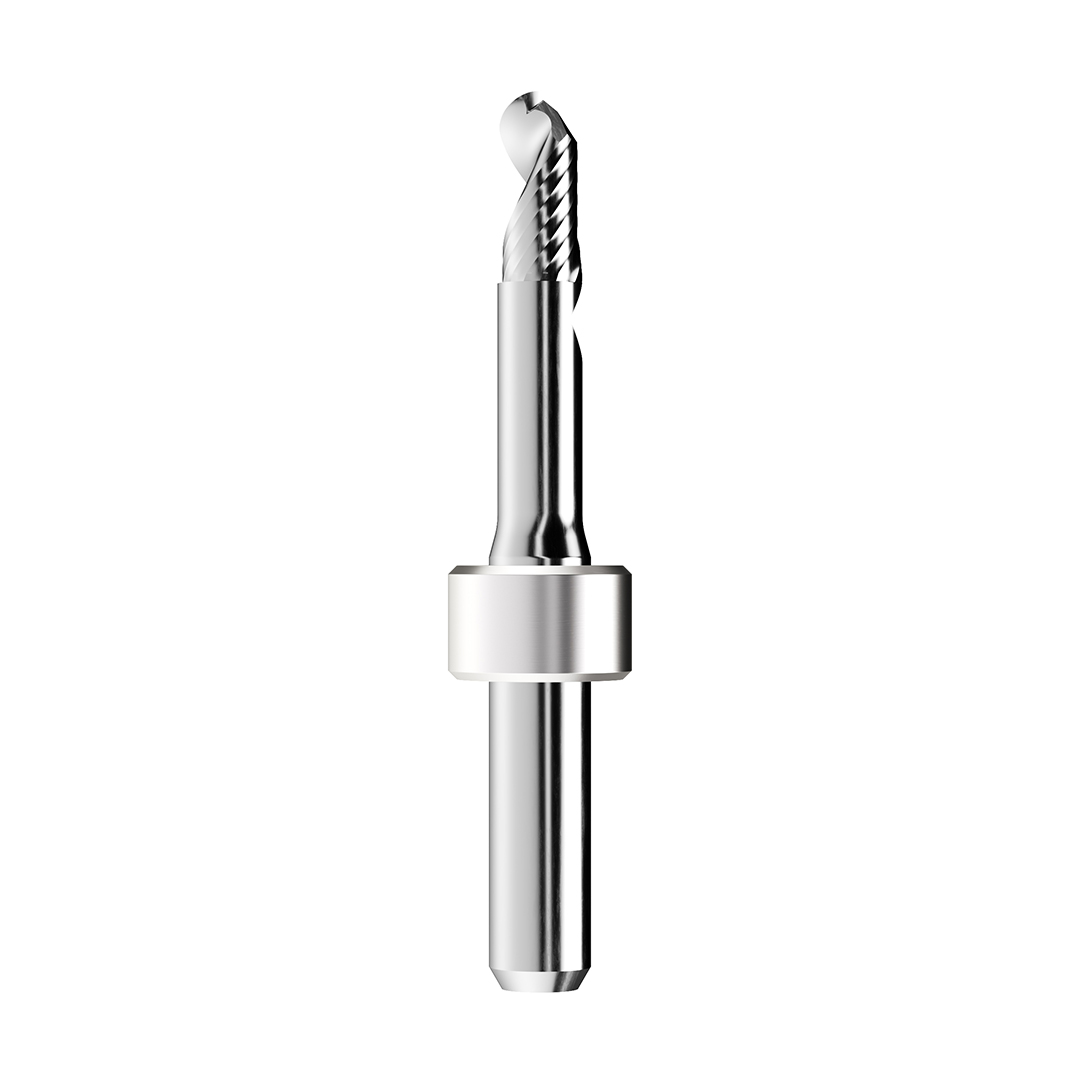

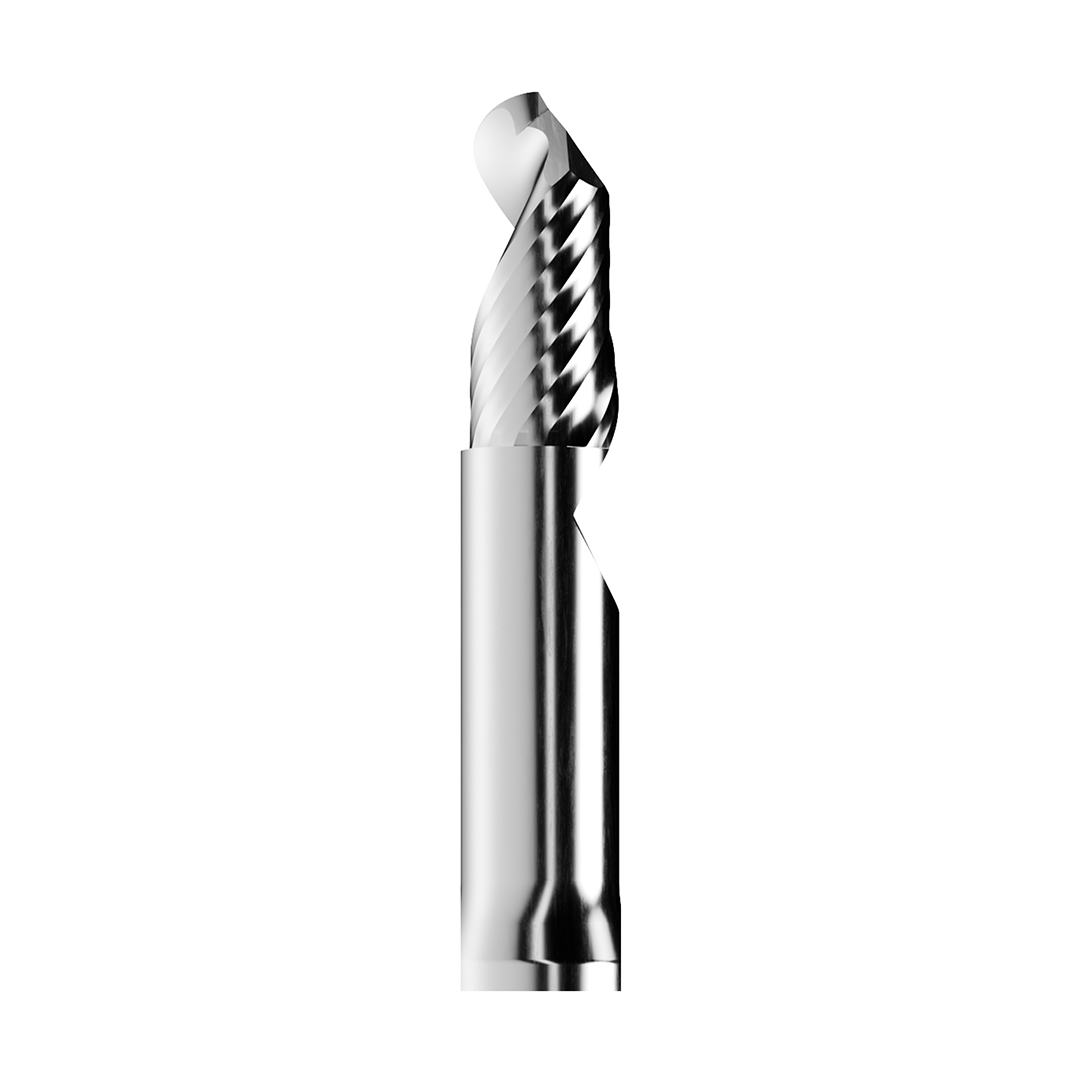

solid carbide ballnose end mill Ø5mm, optimized for machining PMMA, PEEK, wax, 1-flute, highest precision due to very tight tolerances and excellent surface qualities, with neck length l3=25mm, uncoated version for imes-icore 350i-750i machines with shank d2=6mm

Product features

type of tools:	end mill
Radius ( r):	2,5
Machinable Material:	PMMA, PEEK, wax
compatible with machine system:	imes-icore 350i-750i
cutting diameter in mm (d1):	5
shank diameter in mm (d2):	6
coating:	UNCOATED
neck length in mm (l3):	25
total length in mm (l1):	53
radius (r):	2,5
cutting length in mm (l2):	10
number of cutting edges (z):	1
